Rogers 5870 RT/duroid 5870 PCB Board

Name: Rogers 5870 RTduroid 5870 PCB Board
Brand: Bicheng Technologies Limited
Price: 2.99 USD

Wholesale Rogers 5870 RT/duroid 5870 PCB Board from china suppliers

Brand Name : Bicheng Technologies Limited

Model Number : BIC-XXXX-V1.30

Certification : UL

Place of Origin : China

MOQ : 1

Price : USD 2.99-9.99 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 45000 pieces per month

Delivery Time : 10 working days

Packaging Details : Vacuum

Number of Layers : 1 Layer, 2 Layer, Multilayer, Hybrid type (Mixed)

Glass Epoxy : RT/duroid 5870 PCB

Final foil : 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

Final heig1.0-5.0mmht of PCB : 10mil (0.254mm), 20mil (0.508mm), 30mil (0.762mm), 60mil (1.524mm)

Surface Finish : Bare copper, HASL, ENIG, Silver, OSP,etc.

Solder Mask Color : Green, Black, Blue, Yellow, Red etc.

Colour of Component Legend : Green, Black, Blue, Yellow, Red etc.

Test : 100% Electrical Test prior shipment

Contact Now

Hello Everyone,

Today, we introduce high frequency PCB built on RT/duroid 5870 laminates.

RT/duroid 5870 is glass microfiber reinforced PTFE composite of Rogers Corporation, which is designed for exacting stripline and microstrip circuit applications.

Rogers 5870 RT/duroid 5870 PCB Board

Let's see the reasons for using RT/duroid 5870 material.

1) The randomly oriented microfibers result in exceptional dielectric constant uniformity.

2) The dielectric constant of RT/duroid 5870 laminates is uniform from panel to panel and is constant over a wide frequency range.

3) Its low dissipation factor extends the usefulness of RT/duroid 5870 laminates to Ku-band and above.

4) Designed for microstrip and stripline application

PCB Capability
PCB Material:	Glass microfiber reinforced PTFE composites
Designator:	RT/duroid 5870
Dielectric constant:	2.33 ±0.02 (process)
Dielectric constant:	2.33 (design)
Layer count:	1 Layer, 2 Layer, Multilayer, Hybrid type (Mixed)
Copper weight:	0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness:	10mil (0.254mm), 20mil (0.508mm)
PCB thickness:	31mil (0.787mm), 62mil (1.575mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Bare copper, HASL, ENIG, Immersion tin, OSP.

RT/duroid 5870 is often used in double sided PCB, multilayer PCB and hybrid PCB.It's available in a variety of thicknesses for double sided PCB, such as 10mil, 20mil, 31mil and 62mil. Surface finishes are bare copper, HASL, ENIG, Immersion tine and OSP for option.

Rogers 5870 RT/duroid 5870 PCB Board

The typical applications are microstrip and stripline circuits, commercial airline broadband antenna,radar systems, millimeter wave applications, point to point digital radio antenna etc.

Rogers 5870 RT/duroid 5870 PCB Board

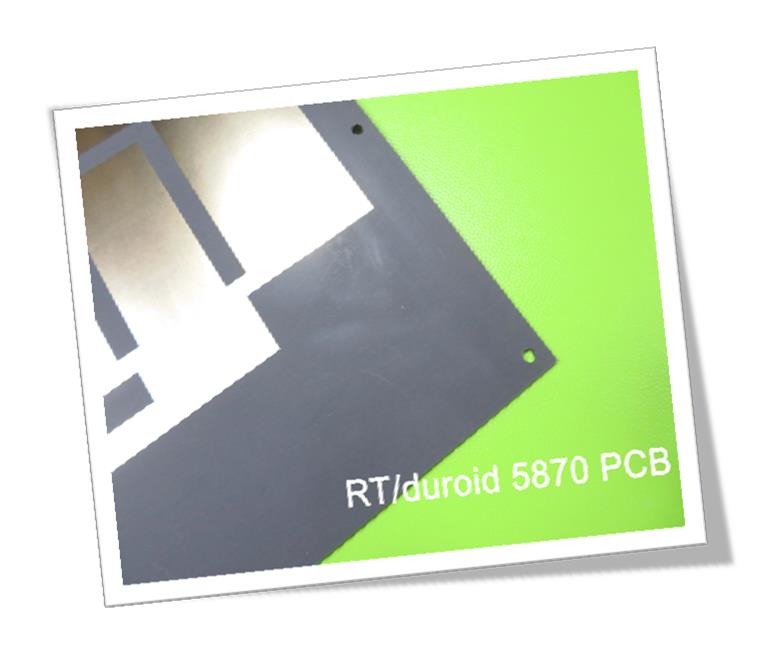

The basic colour of RT/duroid 5870 PCB is black.

We specialize in providing you with prototype, small batches and mass production service.

If you have any questions, please feel free to contact us.

Thank you for your reading.

Rogers 5870 RT/duroid 5870 PCB Board Images
